As the Deepwater Horizon oil spill in the Gulf of Mexico continues to spread, preventative measures must be taken to avoid contamination along the shores of the East Coast. Spil-Stop barriers from All Points International offer a safe, effective and affordable solution that helps protect the environment and halt spills before they reach the shore. We have baffles in stock for immediate deployment, available in customized lengths to suit your containment needs.
For more information, contact API at 201-280-0121, 800-215-1405 or 201-573-0997 - Fax: 201-391-0632 - Email: apimail@api-structures.com
THE BAFFLE MAKES THE DIFFERENCE
|
Spil-Stop™ in place |
Spill enters the area |
Contamination contained |
|
STANDARD HEIGHTS AND DIMENSIONS
| Inflated Height Inflated Width (ft/m) |
Max. Controllable |
Water/Sediment Depth (in/cm) |
Gallons per Linear ft (L/m) |
HD-22oz Vinyl
Weight
per (lb per linear ft/kg per linear m) |
MD-30oz Vinyl
Weight
per (lb per linear ft/kg per linear m) |
| 9 in/0.23 |
6.75/17.18 |
10.5/130 |
1.69/0.52 |
1.00/1.50 |
1.31/1.96 |
| 1/0.31 |
9/22.9 |
14/174 |
2.25/0.69 |
1.34/2.00 |
1.75/2.61 |
| 2/0.61 |
18/45.7 |
56/695 |
4.50/1.37 |
2.21/3.29 |
2.97/4.42 |
| 3/0.92 |
27/69.6 |
131/1627 |
7/2.14 |
3.38/5.04 |
4.60/6.85 |
| 4/1.22 |
36/91.4 |
225/2794 |
9/2.75 |
4.21/6.27 |
5.76/8.58 |
All units are available in customized lengths to suit your unique situation. Larger units are available upon request.

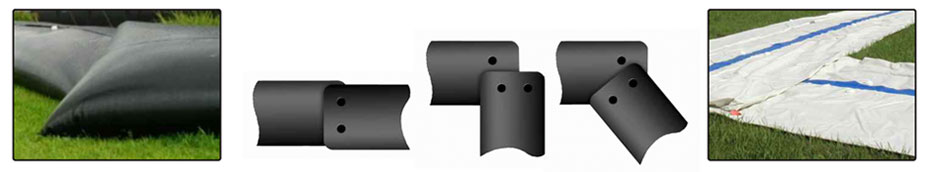

OVERLAP REQUIREMENTS
Units are joined together by an overlapping technique. The units can be joined end to end or at any angle.
| OVERLAP CHART |
| Barrier Height |
9" |
1' |
3' |
4' |
| Suggested Overlap |
14" |
2.5' |
4.5' |
6' |
Free Aqua-Comp analysis software allows you to replicate the behavior of a selected size unit in a chosen environment.

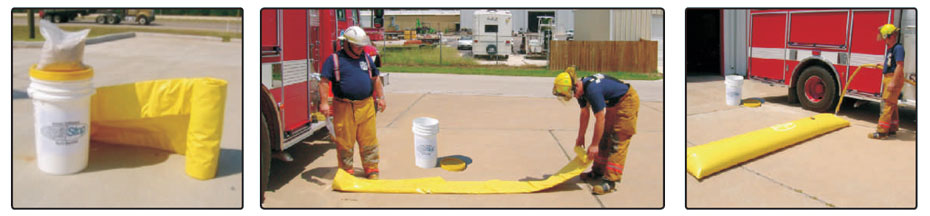

EMERGENCY SPILL CONTAINMENT KIT
Spil-Stop™ is available in a standard size kit or can be custom made to fit your containment
needs. Spil-Stop™ barriers are specifically designed to contain accidental spills until they can
be properly handled. The patented internal baffle system stabilizes the barriers to keep them
in place. Spil-Stop™ is quick to deploy, easy to drain, roll, and store for future use!
If a stream or water source has been contaminated, this application can be used to stop the
contamination from spreading or entering a shared water supply until the contamination can
be removed properly.

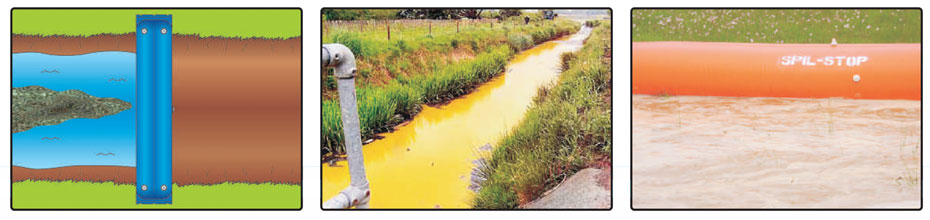

STREAM BLOCK
If a stream or water source has been contaminated, this application can be used to stop the
contamination from spreading or entering a shared water supply until the contamination can
be removed properly.

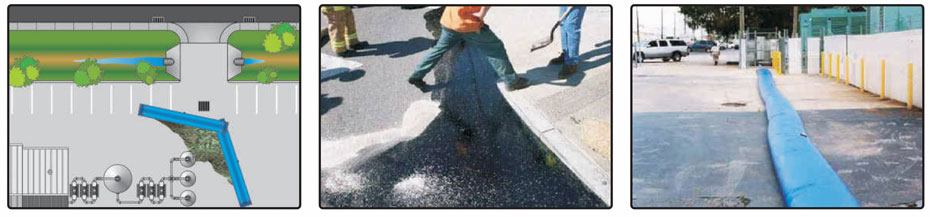

PLANT SPILL CONTAINMENT
This application is used to contain spills/overflows until they can be properly handled.

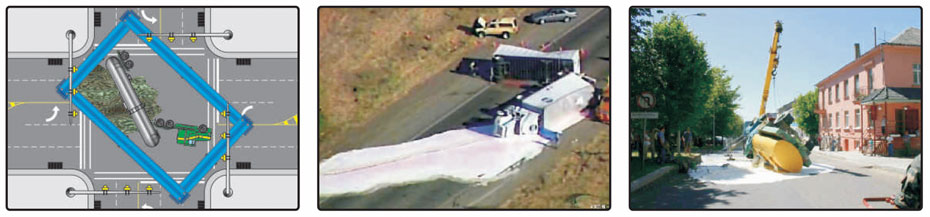

TRUCK SPILL CONTAINMENT
The truck containment method is used to contain potential hazardous substances until they can be
properly disposed of by appropriate emergency response team(s).
